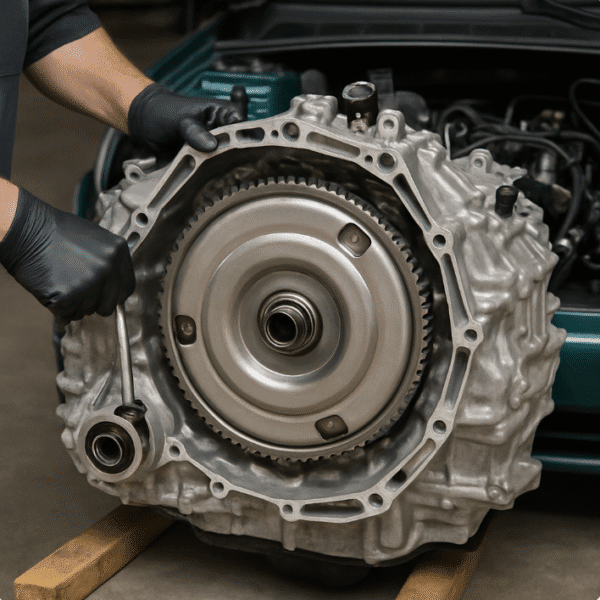

Toyota transmission repair is a common service across many Toyota models, especially those with high mileage or heavy usage. Whether automatic, manual, or CVT, transmission issues in Toyotas can vary depending on model, year, and driving habits.
🔧 Common Signs of Toyota Transmission Issues
Delayed or Slipping Shifts – Feels like hesitation or revving before engaging a gear. – Common in aging automatic or CVT transmissions.
Transmission Fluid Leaks – Red or brown puddles under the vehicle. – Often caused by worn gaskets, seals, or pan bolts.
Check Engine Light – Triggered by transmission control sensors or solenoids. – Requires OBD-II scan for specific transmission-related codes (like P0715, P0741, etc.).
Harsh or Jerky Gear Changes – Often from dirty fluid, failing shift solenoids, or internal wear. – Common in early 2000s Camry and Corolla automatics.
Grinding Noises (Manual Transmissions) – Could indicate clutch wear or damaged synchros.
Typically reliable, but battery or software faults may affect behavior
🔄 Basic Transmission Repair Options
Service
Avg. Cost (USD)
Details
Transmission Fluid Change
$100–$250
Use OEM Toyota ATF (Type T-IV, WS, etc.)
Solenoid Replacement
$250–$700
Especially in Corolla/Camry A/T units
Clutch Replacement (Manual)
$800–$1,200
Includes pressure plate, bearing, and labor
Rebuild (Automatic/CVT)
$1,800–$3,500+
Full disassembly, replacement of worn internals
Used/Refurb Transmission Swap
$1,200–$2,500
Faster and often cheaper than full rebuild
🧪 Toyota Transmission Repair Tips
Always use Toyota-specified transmission fluid. Example: Toyota WS ATF for many post-2005 models, T-IV for earlier.
Flush only if fluid is clean or recently changed. If fluid is very dirty or smells burnt, a full flush may dislodge debris and cause damage—drain & refill may be safer.
Check for TSBs (Technical Service Bulletins). Some transmission issues are covered under extended warranties or recalls—e.g., certain 2014–2017 Corolla CVTs.
Scan with a full OBD-II scanner that reads transmission-specific data (like a Techstream tool).
Ring gear lock plate bolts: 88 N·m (~65 ft·lb) for the front differential case bearings and housing (scribd.com, toyotamanuals.gitlab.io)
Torque Converter & Pump Assembly
While exact front pump bolt specs for U34#E models aren’t always specified in open sources, similar Toyota transmissions (e.g. A340E) often use ~88 N·m for pump housing bolts. Based on gearbox design similarity and rebuild kit practices, this serves as a useful reference point. (reddit.com, akpphelp.ru)
🧰 Example Summary Table
Component
Torque Spec
Valve Body Bolts / Solenoid Mounting
11 N·m (8 ft‑lb)
Oil Strainer Bolts (3)
11 N·m (8 ft‑lb)
Valve Body Lower Cover (6 mm bolts)
6.6 N·m (~58 in‑lb)
Parking Lock / Valve Lever Bracket
20 N·m (~14 ft‑lb)
Front Pump / Differential Housing Bolts
~88 N·m (~65 ft‑lb) (see note)
🚩 Pro Tips for Repair
Always apply ATF to O-rings, sealing surfaces, and shafts before torque assembly.
Use correct bolt sequencing and tighten evenly in stages.
Use OEM Toyota bolts/lock plates where indicated (especially brake/clutch housing and parking pawl). (toyotamanuals.gitlab.io, scribd.com)
Only reuse precoated bolts if cleaned and re‑coated with Toyota sealant (Z11554 or equivalent). (scribd.com)
📥 Where to Access Full Torque Tables & Manuals
U340E A/T Repair Manual RM824E (Supplement for U34#E Series) includes step-by-step procedures, torque values, criteria charts, and service notes (toyotamanuals.gitlab.io, scribd.com).
Corolla supplement RM926E (Oct. 2001) has torque converter & clutch plate inspection details and torque converter assembly guidelines (toyotamanuals.gitlab.io).
At‑manuals.com and Scribd contain downloadable PDFs covering full torque tables and exploded diagrams for all U34#E variants (at-manuals.com, scribd.com, scribd.com).
Here are verified torque specifications for the Toyota A750E / A750F 5‑speed automatic transmissions (used in 4Runner, Tacoma, Tundra, Hilux 4×4, Lexus GX/LX, Prado, etc.)—directly referenced from Toyota Repair Manual RM999U (studylib.net):
Always lubricate O-rings and sealing surfaces with Toyota ATF (Type T‑IV) before assembly.
Tighten evenly in stages—especially for valve body and case bolts.
Replace crush washers on drain plugs and oil cooler unions as per manual.
Community feedback: the drain plug spec is 21 ft·lb, but many find that torque03‑converts quickly felt like washer crush; some stop at ~15 ft·lb to avoid thread damage—inspect for leaks accordingly. (Scribd, purefjcruiser.com, studylib.net, GitLab, Tacoma World)
Here are verified torque specifications and essential service info for the Toyota C150 manual transmission (5-speed) as outlined in Toyota’s official repair manual (RM827E) (GitLab).
🔧 Toyota C150 Transmission Torque Specs & Assembly Instructions
Based on the C150 Manual Transaxle Repair Manual (RM827E) (GitLab):
⚙️ Manual Transaxle Housing & Differential
Attach manual transaxle case using 16 bolts to front transaxle case → Torque: 29.4 N·m (~22 ft·lb) (GitLab)
The Toyota A140E is a 4-speed electronic automatic transmission used in a variety of front-wheel-drive Toyota and Lexus vehicles during the 1990s and early 2000s. It was built for vehicles with moderate power output and provides smooth shifting, electronic control, and reliability when maintained properly.
The Toyota A541E is a 4-speed, electronically controlled automatic transmission, part of the A-series family. It’s an evolution of the A540E, designed to handle more torque and improve shift quality and durability, especially in V6-powered front-wheel-drive (FWD) vehicles like the Toyota Camry and Avalon from the late 1990s to early 2000s.
The Toyota U140E is a 4-speed electronically controlled automatic transmission designed for front-wheel-drive (FWD) vehicles. It’s part of the U-series, known for smoother shifting and better fuel efficiency compared to older A-series automatics.
⚙️ U140E Transmission Overview
Specification
Detail
Type
4-speed automatic (electronic control)
Drive
FWD
Introduced
~1998
Used In
Toyota Camry, Solara, Highlander, RAV4 (4-cyl models)
