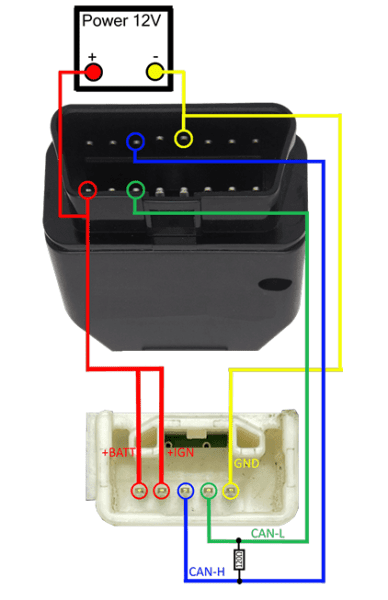

2 Toyota steering angle sensor reset by CAN interface PDF

3 🔧 What Is the Steering Angle Sensor (SAS)?

4 🛠️ When Should You Reset the SAS?

5 🔁 How to Reset Toyota Steering Angle Sensor

5.1 ✅ Method 1: Using a Diagnostic Tool (Recommended)

5.2 ✅ Method 2: Manual Calibration (For Some Older Models)

6 📸 Example: Techstream SAS Reset Screen

7 🚫 Common Issues After Toyota steering angle sensor reset

8 📎 Helpful Resources – Toyota steering angle sensor reset

Resetting the steering angle sensor on a Toyota is often required after performing work on the steering system, such as an alignment, battery replacement, or suspension repair. The steering angle sensor measures the position of the steering wheel and is crucial for systems like the Electronic Stability Control (ESC) or Traction Control.

Here’s how you can reset the steering angle sensor on most Toyota models: – Toyota reset steering angle sensor –

Basic Steering Angle Sensor Reset Procedure:

Center the Steering Wheel:

Start by making sure your steering wheel is perfectly straight. This means the front wheels should also be aligned straight ahead.

Turn the Ignition On:

Turn the key to the “ON” position, but do not start the engine.

Perform the Reset Procedure:

Depending on the Toyota model, you can follow one of these methods:
Method 1 (Common for Most Models): – How to reset steering angle sensor without scanner –
Turn the steering wheel all the way to the right until it stops.
Then turn the steering wheel all the way to the left until it stops.
Bring the steering wheel back to the center (straight position).
Turn off the ignition and wait a few seconds.
Start the engine and check if the stability control warning light is off. If it’s off, the reset is complete.
Method 2 (Using the Diagnostic Tool):
If the manual method doesn’t work or your vehicle requires a more advanced reset, a diagnostic tool (OBD-II scanner with steering angle reset function) may be necessary. This is especially true for newer Toyota models.
A mechanic or technician will connect the tool, access the system, and reset the steering angle sensor through the car’s computer system.

Additional Steps for Some Toyota Models:

Some Toyota models may also require resetting the Vehicle Stability Control (VSC) or traction control systems, which could involve:

Disconnecting and Reconnecting the Battery: This might reset the sensor in some cases. Disconnect the battery for about 10-15 minutes and reconnect it to reset the ECU.
Using a Dealership or Professional Mechanic: For more complex models, the reset procedure may require the use of Toyota-specific diagnostic software.

Warning Signs After Toyota steering angle sensor reset:

If the steering angle sensor is not reset properly, you may notice:

The Traction Control (TRAC) or Vehicle Stability Control (VSC) warning lights may stay illuminated.
The vehicle may not handle as expected, particularly during turns.

In these cases, it’s best to consult with a professional to ensure the system is functioning correctly.
