The Toyota 2TR-FE engine is a robust 2.7-liter inline-four powerplant widely used in various Toyota models, including the Hilux, Fortuner, Tacoma, and Innova. Known for its reliability and performance, understanding its torque specifications is crucial for maintenance and repair tasks.

🔧 Engine Overview

• Displacement: 2,693 cc
• Configuration: Inline-4, DOHC, 16 valves
• Fuel System: Electronic Fuel Injection (EFI)
• Variable Valve Timing: VVT-i (Single or Dual, depending on the model year)
• Compression Ratio: 9.6:1 (Single VVT-i), 10.2:1 (Dual VVT-i)
• Maximum Power: 118–122 kW @ 5,200 rpm
• Maximum Torque: 245–246 Nm @ 3,800–4,000 rpm (Wikipedia, Wikipedia)

🛠️ Torque Specifications

Accurate torque specifications are vital for engine assembly and maintenance. Below are the key torque specs for the 2TR-FE engine:(Scribd)

Cylinder Head Bolts

Properly torquing the cylinder head bolts ensures a secure seal between the head and the engine block. The typical procedure involves multiple steps:

1. Initial Torque: 29 Nm (22 ft-lbf)
2. Second Step: Tighten an additional 90 degrees
3. Final Step: Tighten another 90 degrees

It’s essential to follow the specific sequence and steps outlined in the service manual for your vehicle model.

Main Bearing Cap Bolts

The main bearing caps secure the crankshaft in place. Torque specifications are as follows:(Scribd)

• Initial Torque: 39 Nm (29 ft-lbf)
• Additional Angle: 90 degrees

Connecting Rod Bolts

Connecting rods link the pistons to the crankshaft. Proper torque ensures engine longevity:

• Torque: 27 Nm (20 ft-lbf)
• Additional Angle: 90 degrees(Wikipedia)

Camshaft Bearing Cap Bolts

These bolts hold the camshaft in place:

• Torque: 10 Nm (7 ft-lbf)

Timing Chain Tensioner Bolts

The tensioner maintains proper chain tension:

• Torque: 9.8 Nm (7 ft-lbf)

Oil Pan Bolts

Securing the oil pan prevents leaks:

• Torque: 9.8 Nm (7 ft-lbf)

Spark Plugs

Properly torqued spark plugs ensure optimal combustion:

• Torque: 18 Nm (13 ft-lbf)

🖼️ Visual Aids

For a detailed visual guide on torque specifications and bolt locations, refer to the following resources:

• The Torque Spec. Guide | Tacoma World: This guide provides diagrams and torque specs for various engine components. (Wikipedia)
• 2TR-FE Engine Mechanical | Scribd: A comprehensive document detailing the 2TR-FE engine’s mechanical aspects, including torque specs. (Wikipedia)

📘 Additional Resources

For more in-depth information and step-by-step procedures, consider consulting the following:

• Toyota Service Manuals: Official manuals provide detailed instructions and specifications for maintenance and repairs.
• Repair Guides on AutoZone: Offers repair guides and torque specifications for various Toyota models.
• DIYAuto.com: A community-driven platform with DIY guides and torque specs shared by automotive enthusiasts.

⚠️ Important Notes

• Always use a calibrated torque wrench to ensure accuracy.
• Follow the specific torque sequence and steps outlined in your vehicle’s service manual.
• Replace any bolts or components that show signs of wear or damage.
• If unsure about any procedure, consult a professional mechanic or refer to official service documentation.

By adhering to the correct torque specifications and procedures, you can ensure the longevity and reliability of your Toyota 2TR-FE engine.

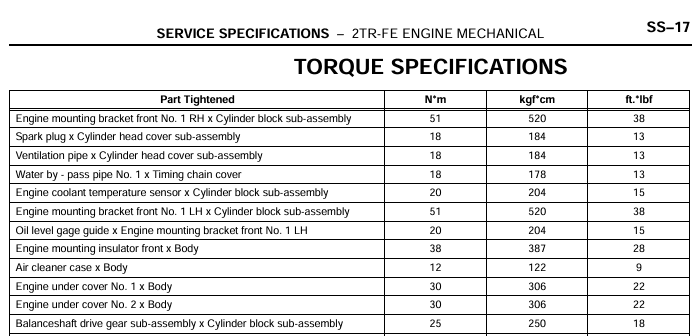

Toyota 2TR FE torque specs PDF
