2AZ FE torque Specs
The Toyota 2AZ-FE engine is a 2.4-liter inline-4 DOHC powerplant, widely used in models such as the Camry, RAV4, Highlander, and Scion tC. Proper torque specifications are crucial for maintaining engine integrity during assembly and maintenance. Below is a comprehensive guide to the torque specifications for various components of the 2AZ-FE engine.

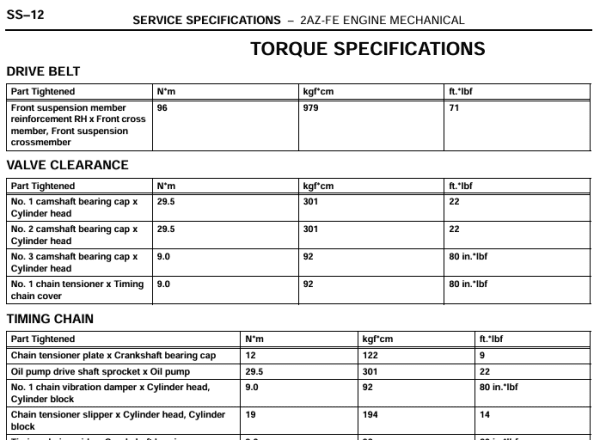

🔩 Cylinder Head and Valve Train
Cylinder Head Bolts:
- Step 1: Tighten all bolts to 79 Nm (58 ft-lbf).(engine-specs.net)
- Step 2: Tighten all bolts an additional 90 degrees.(engine-specs.net)
This two-step process ensures proper clamping force and gasket sealing. (GitLab)
Camshaft Bearing Cap Bolts:
- No. 1 Cap: 30 Nm (22 ft-lbf).(GitLab)
- Other Caps: 9 Nm (6.6 ft-lbf).(engine-specs.net)
Accurate torque on these bolts is essential to prevent camshaft binding.
⚙️ Timing Components
Camshaft Timing Sprocket Bolt:
- 54 Nm (40 ft-lbf).(share.qclt.com)
Timing Chain Tensioner Nuts:
- 9 Nm (6.6 ft-lbf).
Timing Chain Cover Bolts:
- Varies by bolt size:
- 10mm Head Bolts: 9 Nm (6.6 ft-lbf).
- 12mm Head Bolts: 20 Nm (15 ft-lbf).
- 14mm Head Bolts: 43 Nm (32 ft-lbf).(torkspec.com)
Proper torque ensures timing accuracy and prevents oil leaks. (share.qclt.com)
🛠️ Engine Block Components
Main Bearing Cap Bolts:
- Initial Torque: 39 Nm (29 ft-lbf).
- Additional Angle: Tighten 90 degrees further.(GitLab)
Connecting Rod Cap Bolts:
- Initial Torque: 25 Nm (18 ft-lbf).
- Additional Angle: Tighten 90 degrees further.
These torque values are critical for maintaining crankshaft alignment and bearing longevity. (Scribd)
🧰 Ancillary Components
Intake Manifold Bolts:
- 30 Nm (22 ft-lbf).
Exhaust Manifold Nuts:
- 34 Nm (25 ft-lbf).
Spark Plugs:
- 20 Nm (15 ft-lbf).
Oil Pan Bolts:
- 9 Nm (6.6 ft-lbf).(engine-specs.net)
Ensuring correct torque on these components prevents leaks and maintains engine performance.
📚 Additional Resources
For a visual guide on the cylinder head torque procedure, you may find this video helpful:
2AZ-FE 2.4L Cylinder Head Gasket, Bolts Torque Procedure
Always refer to the specific service manual for your vehicle model and year to confirm torque specifications. Using a calibrated torque wrench is essential to achieve accurate results and ensure engine reliability.
